Bladder

Accumulator Specifications
Components Standard Options
  Shell
(Homogenous Seamless)

Chrome-Molybdenum Steel,
SA-372 GR E Class 70

Electroless Nickel Plating
Phenolic Resin Coating
Bladder Assembly
(w/ Molded Steel Stem)

Buna-Nitrile

Fluorocarbon Elastomer, EPR,
Low Temperature
Fluid Port Assembly

AISI 4140

Electroless Nickel Plating
Stainless Steel

Safety Features

Design factors exceeding the requirements of all domestic and international standards.
Integrated pressure relief design.
Cannot be disassembled while pressurized.
Each shell individually tested and certified to ASME Sec. VIII, Div. I  (1 Quart and 1 Gallon Excluded.)

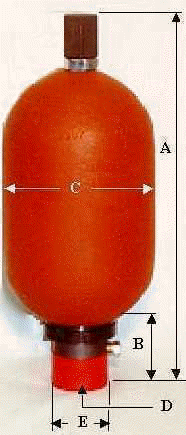

Models A B C D E Weight
  in cm in cm in cm FPT in cm Lbs Kg
1 Quart 11 3/4 30 2 1/8 5.4 4 3/4 11.4 1 " 1 5/8 4.1 10 5
1 Gallon 17 1/4 44 3 1/2 8.8 6 3/4 17.1 1 1/4" 2 3/8 6.0 34 15
2.5 Gallon 21 1/4 54 3 1/2 8.8 9 1/16 23.0 2" 3 7.6 80 36
5 Gallon 33 1/2 85 3 1/2 8.8 9 1/16 23.0 2" 3 7.6 120 54
10 Gallon 54 1/4 138 3 1/2 8.8 9 1/16 23.0 2" 3 7.6 220 100
11 Gallon 59 3/4 152 3 1/2 8.8 9 1/16 23.0 2" 3 7.6 240 109
15 Gallon 77 3/4 197 3 1/2 8.8 9 1/16 23.0 2" 3 7.6 305 138
